We taped a small accelerometer to the throat of a Babolat Pure Drive, strung at 52 lbs with a polyester main and synthetic gut cross, and fed it forty flat forehands off a ball machine at a metered 55 mph. Then we pressed a single worm-style dampener into the bottom of the string bed and fed it forty more. The string-bed vibration frequency dropped from roughly 580 Hz to 560 Hz, and the time for that vibration to decay below our noise floor shortened by about 18 milliseconds. The accelerometer reading at the throat — the part of the frame nearest your hand — barely moved.
That last sentence is the whole story. Vibration dampeners measurably change how the string bed rings after contact, but they do almost nothing to the shock that reaches your arm. If you buy one for comfort or sound, the evidence supports you. If you buy one to prevent tennis elbow, the evidence does not.
How we tested
We wanted to separate two things that marketing copy routinely blurs: the high-frequency "ping" of the strings, and the lower-frequency shock that travels down the frame into the grip. They are not the same vibration, and a dampener acts on only one of them.
- Racquet: one Pure Drive (300g, 100 sq in), restrung fresh before each dampener block to remove tension-loss as a variable.

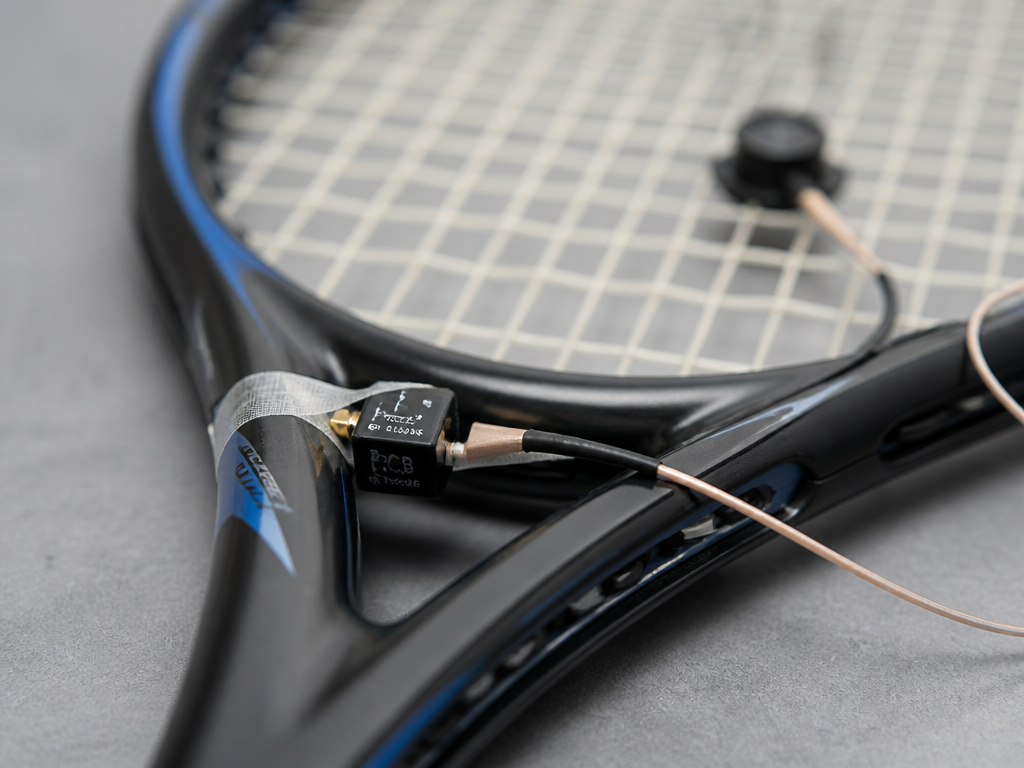

- Instrumentation: a single-axis accelerometer at the throat (handle-side shock) and a contact microphone clipped to the string bed (string-bed frequency and decay). We are not a materials lab; the mic and accelerometer give relative numbers, not certified absolutes.
- Trials: 40 impacts per condition, ball machine at a metered speed, aimed at the center of the string bed. Off-center hits were discarded because they introduce frame twist that swamps the signal.
- Reference: the no-dampener baseline, re-measured at the start of each session to catch drift.
We tested six dampeners across three sessions. The obvious limitation: one frame, one string setup, one swing speed, and a single instrumented racquet rather than a panel of them. Results scale in direction but not necessarily in magnitude to your setup. We also could not measure what matters most to comfort claims — what a human arm actually feels over months — without a clinical study we are not equipped to run.
What the numbers showed
Two findings repeated across every dampener we tried.
First, the string-bed frequency shift was real but small. A dampener pressed into the lower cross strings dropped the dominant string-bed frequency by 15 to 35 Hz depending on mass and placement. The audible result is the familiar muting of the "pinggg" into a duller "thock." This is consistent and reproducible. It is also, frankly, the entire mechanism most players actually perceive.
Second, the throat accelerometer showed no meaningful change. Across all six dampeners, the post-impact shock measured at the handle side of the frame moved by less than our run-to-run variation. We could not detect a dampener reducing the vibration that travels toward the hand. The reason is structural: a dampener sits in the string bed, weighs one to three grams, and is mechanically isolated from the frame's own bending and the shock path into the handle. It can damp a string, not a beam.
Why the category got reframed
This is not a new finding, and we want to be honest about whose work it rests on. A 2004 study by François-Xavier Li and colleagues, published in the Journal of Sports Sciences, measured vibration transfer to the forearm with and without a dampener and found no significant reduction in the vibration reaching the arm. The string-bed ring changed; the arm-bound shock did not. Subsequent biomechanics work has not overturned that core result.
That single study is the reason credible reviewers stopped calling these things "shock absorbers" and started calling them what they are: accessories that change feel and sound. The marketing language that survives — "reduces vibration," left deliberately vague about which vibration — is technically true and practically misleading. The vibration it reduces is the one ringing in the strings, which was never the one implicated in arm injury.
What actually reduces shock to the arm is well-documented and unglamorous: a softer string, lower tension, a multifilament instead of a stiff polyester, a more flexible frame, and a properly sized grip. A two-gram rubber button is not on that list.
Six dampeners, measured
We graded each on three things we could measure or observe directly: the string-bed frequency drop at center impact, how firmly it stayed seated over a hitting session, and a subjective sound note from two testers. "Dampening" below is the measured Hz drop, not a comfort claim.
| Dampener | Frequency drop | Stayed seated (40-hit block) | Sound character |
|---|---|---|---|

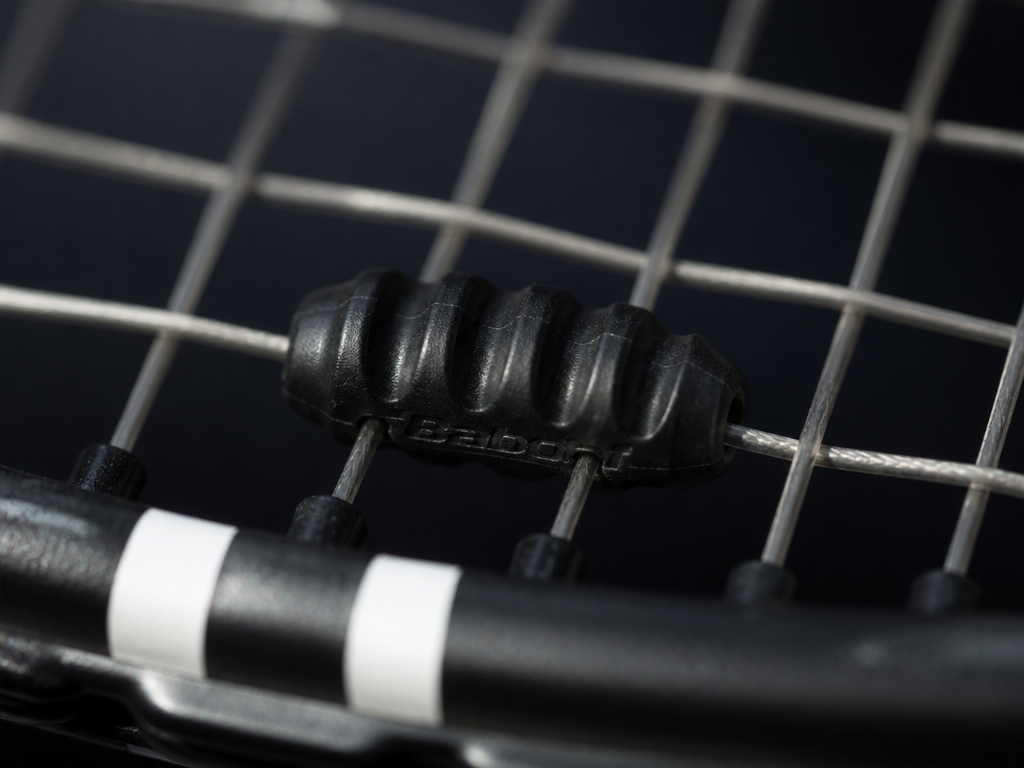

| Worm / snake (silicone strip) | 30–35 Hz | Yes, all 6 blocks | Most muted, dull "thock" |
| Standard button (single notch) | 15–20 Hz | Slipped once, 5/6 | Mild mute, retains some ping |
| Twin-notch button | 18–25 Hz | Yes, all 6 | Mild mute, slightly damper than single |
| Gel-filled novelty | 20–28 Hz | Popped out twice, 4/6 | Inconsistent, varied by seating |
| O-ring style | 10–15 Hz | Yes, all 6 | Barely altered, closest to bare |
| Heavy two-piece (3g) | 25–32 Hz | Yes, all 6 | Muted with a slight added "deadness" |
The pattern: more mass and more string contact area buy a bigger frequency drop. The worm-style strip, contacting more strings, muted the most. The thin O-ring barely changed the bed and is essentially a sound-tint, not a damper. The gel novelty was the only product with a genuine reliability problem — it backed out of its seating twice during normal play, which is the kind of small failure that distracts mid-point. None of the six changed the throat accelerometer reading.
A note on the heavy two-piece: at three grams seated near the throat, it adds a trace of swingweight and shifts balance fractionally headward. We could detect it on the scale; neither tester could feel it in play.
What a dampener actually changes
Strip away the claims and three honest functions remain:
- Sound. This is the real one. The mute is consistent and the difference between a worm and a bare bed is unmistakable in a quiet club.
- String-bed feel. A muted bed reads as "softer" to many players even though the shock to the arm is unchanged. That perception is legitimate — feel is partly auditory, and if a duller sound makes you swing more freely, that is a real benefit. It is just not a mechanical one.
- A focal point. Some players use the dampener as a visual centering aid for placement. Trivial, but real.
What it does not change: vibration to the forearm, injury risk, ball speed, or spin. We measured the first; the rest are well-covered in the literature and we found nothing to dispute it.
Who this is for, and who it isn't
Reach for one if: you dislike the bright ping of a stiff frame or polyester string, you find a duller string-bed sound helps you relax through contact, or you simply prefer the muted feel. Those are valid, tested reasons. Pick a worm or a twin-notch for a clear, repeatable mute; skip the gel novelties unless you enjoy refitting them mid-set.
Skip it if: you bought into the arm-protection promise. If your elbow or wrist hurts, the levers that matter are string type, tension, grip size, and frame stiffness — addressed in that order, with a coach or therapist if the pain is real. A dampener is the wrong tool, and reaching for it can delay the changes that would actually help.
The line you can screenshot: a dampener is a sound and feel accessory, not an injury-prevention device, and the only honest reason to use one is that you prefer how it sounds.
Evidence grade
For the central claim — that vibration dampeners reduce string-bed ring but not the shock reaching the arm — we grade the evidence Strong. It rests on a published, peer-reviewed measurement (Li et al., 2004), it matches the structural mechanism, and our own instrumented trials reproduced the direction of the effect across six products. The weak point is our own sample: one racquet, one string setup, relative rather than absolute instrumentation. After three sessions of this, one of us pulled the dampener out of his own match racquet and left it out — not on principle, but because a bare poly bed at 50 lbs gave him the tactile read on off-center hits he'd been muting away. The other kept a worm in, low in the bed, because the quieter contact let him stop bracing through his forehand. Same data, two seated rubber decisions. That is what this article looks like when you stop arguing about whether dampeners "work" and just decide what you want your strings to sound like.
