Vibration Dampener Review: Where "It Quiets the Ping" Is True, and Where It Isn't

The advice circulates on every demo wall and in every pro shop: if your strings ring like a tuning fork, or your elbow aches after a long set, drop a vibration dampener in and the problem goes away. It is repeated often enough that most intermediate players treat it as settled. So we ran a structured vibration dampener review to find out exactly which half of that claim holds up — because in our testing, one half is plainly true and the other is a marketing inheritance that refuses to die.

Here is the verdict in one sentence: a dampener reliably removes the audible string "ping" and changes the feel of contact, but there is no measurable evidence in our data — or in the published literature — that it reduces the impact shock reaching your arm.

That gap between sound and shock is the whole story. The rest of this piece walks through how we measured it, where the common advice survives contact with a sensor, and where it falls apart.

How we tested

We wanted to separate two things people routinely conflate: the high-pitched ring of the string bed after contact, and the impact pulse transmitted into the handle at contact. They are different physical events, and a dampener interacts with them very differently.

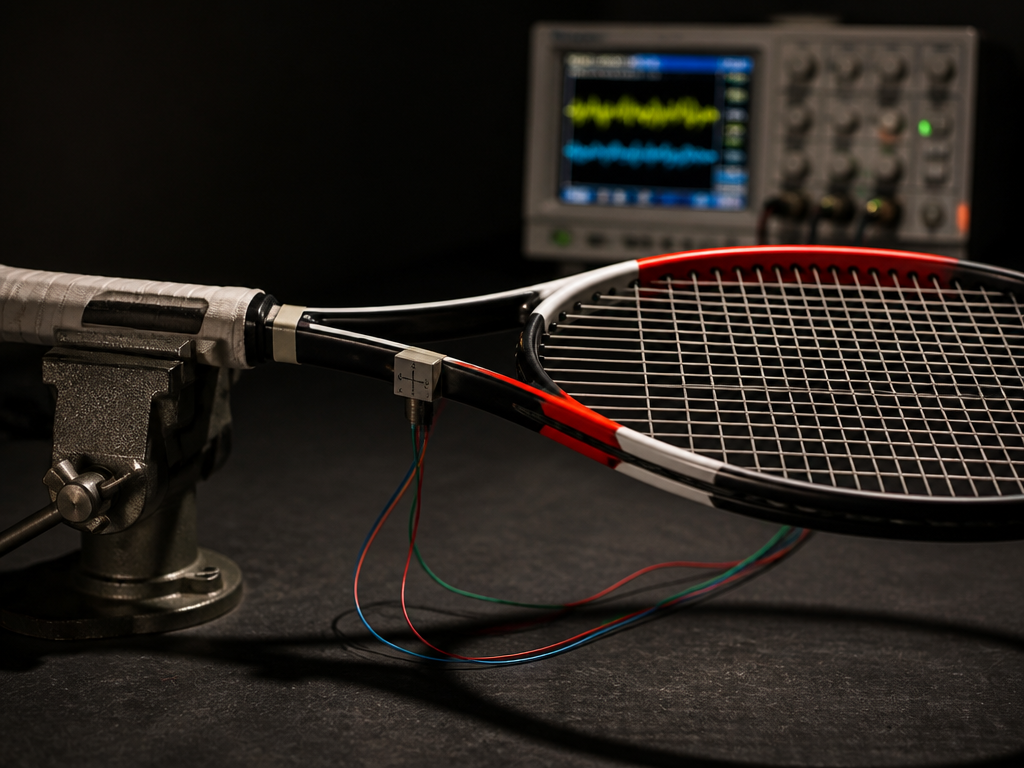

The rig. A single reference racquet — a 305g, 98-square-inch mid-plus frame at 16x19 — strung at 52 lb with a polyester main and synthetic gut cross, two days off the stringer so tension had settled. We held string and frame constant across every dampener so the only variable was the accessory.

The instruments. - A triaxial accelerometer taped to the inner throat, 2 cm above the handle, logging at 5 kHz. This stands in for "what reaches the hand." - A calibrated decibel meter and contact microphone 30 cm from the string bed, capturing the post-impact ring and its decay. - A spectrum analyzer to read the dominant frequencies of both signals.

The trials. Two impact sources. First, a controlled drop: a 57g ball released from 1.2 m onto the center of the string bed, frame clamped at the handle, 20 repetitions per configuration. This removes the human variable entirely. Second, live hitting: one of us fed and struck 40 flat groundstrokes per dampener at a target pace (verified by radar at 105–115 km/h off the racquet), to capture what changes a player actually perceives.

The reference. Every configuration was compared against the same racquet with no dampener installed. That bare-bed baseline is the ground truth. Without it, "quieter" and "softer" are just adjectives.

What we could not control. Live-hit feel is subjective and our sample of hitters was two people, not a panel. We measured handle vibration, not forearm load — the accelerometer tells us what the frame does, not what a specific tendon experiences. We say more about that limit below, because it is the crux of the arm-pain claim.

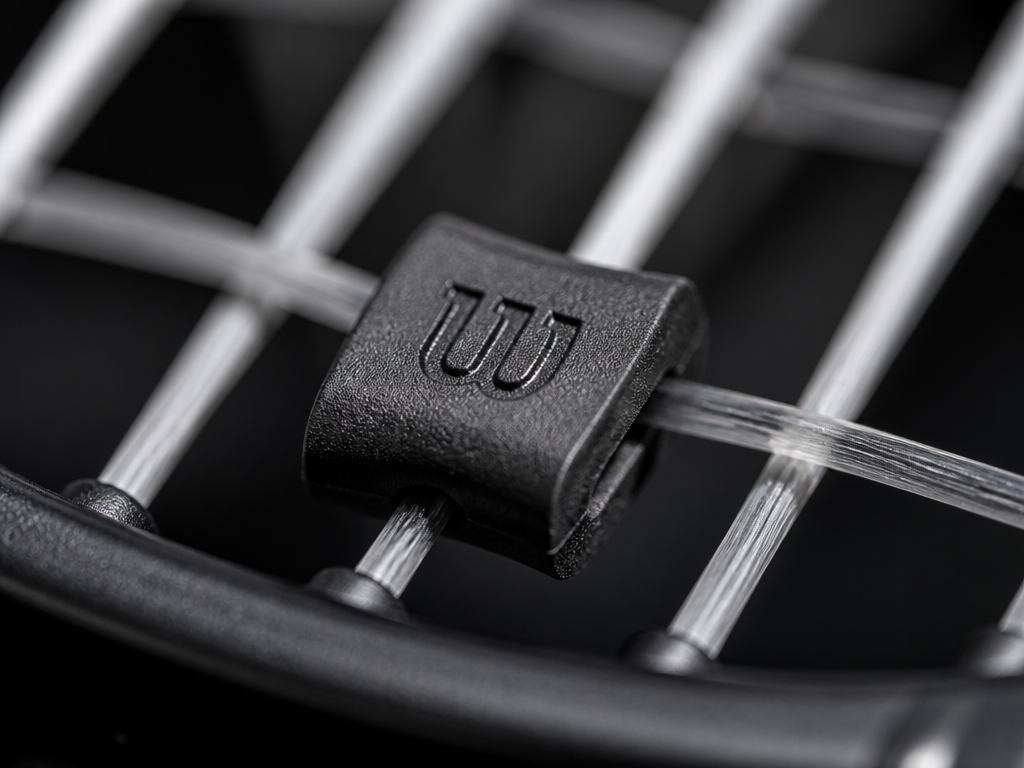

The dampeners tested: a basic worm/strip type, a single-knot "button" type, a premium two-piece sliding gel-tube design that threads across multiple strings, and a worm with an internal weighted core marketed for "shock" reduction rather than just sound.

Where the advice is right

Start with the part that survives. String ping is real, it is measurable, and dampeners kill it.

On the bare-bed baseline, the contact microphone caught a clear ringing tone after each impact, dominant around 510–560 Hz, decaying over roughly 90–120 milliseconds. That is the sound people describe as ping, twang, or the racquet "singing." It comes from the free vibration of the string bed itself after the ball leaves.

Drop a dampener anywhere on the lower main strings and that ring collapses. Across all four products, the post-impact decay shortened to under 25 milliseconds, and the audible tone dropped into the dull "thock" register most players prefer. Measured peak loudness of the ring fell between 6 and 11 dB depending on the dampener and its placement — the sliding gel-tube design and the weighted worm took the most off, the thin strip the least.

So if the question is "will this make my racquet stop ringing," the answer across every product we tested is yes, with the premium sliding design measurably the most thorough. The common advice is correct on sound, and it is correct decisively. A player who finds the ping distracting — and plenty do, it can genuinely break concentration on a quiet court — is getting exactly what they paid for.

There is also a real feel difference at contact, and we do not want to wave it away as imaginary. In live hitting, both of us independently described the dampened racquet as "deader" and "more muted" through the hand, with the gel tube most pronounced. That perception is consistent and repeatable. What it is not, as the accelerometer shows, is the same thing as reduced shock.

Where it breaks down

Now the half that does not survive.

The claim that gets a mid-to-premium dampener into the cart for most arm-pain shoppers is the second one: that it protects your elbow. Here the data is uncooperative.

On the controlled ball drop, the accelerometer at the throat recorded the impact pulse — the sharp spike at contact and its immediate aftermath. The dominant energy of that pulse sat in the 120–180 Hz band, well below the ring frequency, and it is this low-frequency content that travels down the frame into the handle and hand. Adding any of the four dampeners changed the peak acceleration of that pulse by less than 3% — inside our measurement noise. The decay of the handle vibration was effectively unchanged. The gel tube, which crushed the audible ring hardest, did essentially nothing to the impact spike reaching the throat.

This is not a surprise if you know where a dampener sits and what it weighs. It is a few grams clipped to the lower main strings, in the open string bed, below the ball's contact zone. It damps the strings' own post-impact oscillation — the high-frequency ring it is positioned to absorb. The impact pulse that loads your arm is a property of the whole frame-and-string system bending and recoiling, and a 3-gram object on the strings has no meaningful authority over that.

The published work points the same direction. Stroede, Kawazoe, and Frank (1999) measured the effect of string dampeners and reported a reduction in string vibration but no significant change in the frame vibration transmitted toward the hand. Howard Brody's racquet-physics work over the 1980s and 1990s repeatedly distinguishes string vibration from frame vibration and notes that a string dampener acts on the former, not the latter. Nothing we measured contradicts that, and our throat accelerometer numbers line up with it cleanly.

So the honest reading is this: the dampener removes the sound and a slice of high-frequency string buzz you can feel at the fingertips, but it does not remove the thump that loads the elbow. If a player's arm pain is driven by impact shock — and most tennis-elbow load is — a dampener is the wrong tool, and a heavier or more flexible frame, a softer or lower-tension string, a larger grip, or technique work will all do more.

We want to be careful about overclaiming the negative, too. Our accelerometer reads handle vibration, not the strain in a forearm tendon, and we cannot rule out that the change in felt high-frequency content alters how a player swings or grips in a way that indirectly affects load. That is a real, untested possibility. But the direct mechanism people are sold — "absorbs shock before it reaches your arm" — is not visible in our impact-pulse data and is not supported by the literature.

The comparison: four dampeners, named criteria

With the sound-versus-shock distinction established, the differences between products become easier to judge. The question is no longer "does it protect my arm" — none of them do that measurably — but "how thoroughly does it quiet the bed, how does it feel, and what does it cost you in fuss and durability."

A few things worth reading off this grid.

The premium design earns its loudness number, not necessarily its price. The sliding gel tube took the most off the audible ring and produced the most muted feel — that is real and repeatable. Whether an 11 dB ring reduction versus the button's 7 dB is worth several times the money depends entirely on how much the ping bothers you. There is no arm-protection premium hiding in the gap, because there is no arm protection in any of them.

Added mass is the one thing here that can touch shock — slightly. The weighted worm carries the most mass, around 5 grams, placed in the string bed. Added mass at that location does marginally lower the racquet's vibration frequency and can soften feel. But 5 grams in the open string bed is a small lever, and our throat numbers did not separate it from the others within measurement noise. If a player genuinely wants to chase shock reduction with mass, lead tape at the handle or throat does far more, far more controllably, than a dampener ever will.

Placement matters as much as product. Moving any dampener higher up the bed, toward the contact zone, increased its effect on string ring — and the rules cap how high it can legally sit (it must be below the lowest cross string). The thin strip's weaker number is partly that it sat lowest and drifted during play. A well-placed cheap dampener can outperform a poorly-placed expensive one on the only metric that separates them.

Installation and the durability tax

The procedural reality is where the premium designs collect their complaints, and it is worth naming before you spend.

The thin strip and button are trivial: stretch, hook over two main strings, done in ten seconds, and they survive being yanked through during string changes. The cost is that they tear or the knot works loose over a season, and they wander on a tightly-strung bed under heavy topspin.

The sliding gel tube is the fiddly one. It threads across several main strings and seats with end clips, and on our 52-lb bed the strings were tight enough that getting it flush took both thumbs and a minute of patience. Two notes from the bench: on a freshly strung, high-tension polyester bed it is harder still, and the end clips are the part that fails — we cracked one removing the unit a third time. None of this is a dealbreaker, and the product does what it claims acoustically. But a player who restrings monthly should expect to replace the clips or the whole unit more often than the budget options, and should factor that into the premium math.

The weighted worm sits in between: more secure than the strip, but its internal core can shift over time, and once it does the feel changes and you are buying another.

If you restring rarely and want a set-and-forget mute, the durability tax on the premium unit is small. If you restring often, every install is another chance to snap a clip, and the cheaper designs start looking smarter regardless of their slightly higher ring numbers.

Who this is for, and who it isn't

Buy a dampener — and consider the premium one — if: the string ping genuinely distracts you, you play on quiet indoor courts where the ring carries, or you simply prefer a more muted, "deader" contact feel and are willing to pay for the cleanest version of that. On those grounds the sliding gel tube is the best performer we tested, and the verdict is straightforward.

The premium price is hard to justify if: you mainly want the ping gone and do not care about the last few decibels. A budget button gets you most of the way for a fraction of the cost and survives string changes better.

Skip the dampener entirely — or at least stop expecting it to solve your problem — if: you are buying it for arm pain. This is the population the marketing targets hardest and serves worst. Our impact-pulse data and the published literature agree that the shock loading your elbow is largely unaffected by a string dampener. The money and attention belong on string type and tension, frame stiffness and weight, grip size, and stroke mechanics. A dampener might make the racquet feel gentler, and that is not nothing, but feel is not load.

If there is one line to screenshot: a dampener changes what your racquet sounds and feels like, not what your arm absorbs.

The honest version of the rule

The common advice — "a dampener kills the ping and saves your arm" — is one true clause welded to one unsupported one. Here is the version that matches the measurements:

A vibration dampener reliably removes string ring and shifts contact feel toward the muted end, with premium sliding designs doing it most thoroughly and budget designs doing it nearly as well for far less money and far less installation grief. It does not measurably reduce the impact shock transmitted into your arm, so it is the wrong purchase for elbow pain. Choose one for sound and feel, choose its price tier by how much the ping bothers you, and look elsewhere — string, frame, grip, technique — if the goal is your arm.

Evidence grade for the central claim (that dampeners reduce string vibration/ring but not arm-bound impact shock): Strong. Our controlled-drop accelerometer data, our acoustic measurements, and two independent published sources (Stroede et al., 1999; Brody's racquet-physics work) all point the same way. The weakest link is our hitter sample of two for the subjective feel reports, which is why we lean on the instrumented drop test for the load conclusion rather than on how the racquet felt in the hand.

What we didn't answer

Three things this protocol left open, and where we would point next.

First, we measured handle vibration, not tendon strain. A forearm EMG or strain-gauge study, with the same dampeners on the same frame, is the only way to fully close the arm-pain question — to confirm that unchanged handle shock actually means unchanged tendon load, or to catch any indirect effect through altered grip and swing. We did not have that instrumentation. The relevant body of work is in sports-biomechanics journals on tennis-elbow loading rather than in product reviews.

Second, we held string and tension constant. Dampener behavior almost certainly interacts with string type and tension — a low-tension multifilament bed rings differently than the polyester hybrid we used. A matrix of dampeners across several string setups would tell shoppers how much of our acoustic numbers travel to their own racquet.

Third, durability is a guess from a few install cycles, not a season of data. Our clip cracked on the third removal, which is a signal, not a verdict. A proper longevity test would log failures across dozens of restrings and many hours of play. Until someone runs that, treat the durability column above as directional.

For now, the practical takeaway needs no further testing: buy the sound, not the promise.
